Open Compact Cabinet Steel Frame High Pressure Compressors

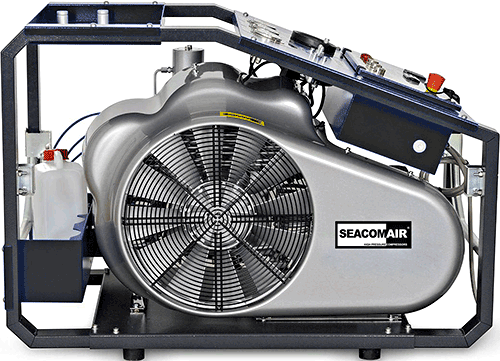

SeaComAir 215 - 265 Open Cabinet Steel Frame Electric
Models | Motor | Charging Rate* | Refill time* | Pressure | Dimensions LxDxH | Weight | Noise |
|---|---|---|---|---|---|---|---|
Open Cabinet | Electric | L/min - scfm | Min | Bar - psi | inch - cm | kg - lbs | dB (ISO3746) |
SCA215E43/55GRE | 4kW 230/400V 50-60Hz 3ph | 240 - 10 | 8 | 340 - 5000 | 44”(112)x30”(63)x28”(71) | 159 - 350 | 80 |
SCA265E43/75GRE | 5,5kW 230/400V 50-60Hz 3ph | 315 - 14 | 5,5 | 340 - 5000 | 44”(112)x30”(63)x28”(71) | 164 - 356 | 82 |
Standard Features
Specifications
- Fully Automatic High Pressure Compressor
- Mounted on a durable heavy duty Powder Coanting frame
- Main control panel
- Pressure safety relief valve on all stages, Final pressure safety relief valve
- Fully Automatic condensate drain system w/collector
- Final pressure switch with auto shut-off and pressure gauge
- Hour meter
- Low oil shut down switch
- External oil level sight glass indicator with oil drain
- Phase Controller prohibit reverse rotation
- Cabinet High Temperature shutdown switch
- Pressure gauges installed after each stage. Easy to monitor all three stages of compression
- Oil filled final pressure gauge 0~400bar/5800psi
- Breathing Air Purification System with activated carbon and molecular sieve
- Meets or exceeds all international breathing air standards for CGA Grade“E” Air and DIN EN12021
- Two (2) High Pressure Filling hoses with On/Off filling valve and bleed, depressurize system, with SCUBA INT yoke, DIN200 or DIN300
- Carry Handles
- Continuous duty air cooled, three stage three cylinder high pressure air compressor all stainless steel inter- and final-stage coolers
- Mounted on a free standing steel frame
- Max. RPM 1350 - 1550
- Splash lubrication with oil thrower pin
- Oil Capacity 1,7 Liter / 59 oz
- Oil Type SeaComAir synthetic compressor oil ISO VG150
Factory Options
Models | Description |
|---|---|
MP330 | Compressor with 300bar/4350psi max. pressure |
OPL | Oil Pump Lubrication |
2PCHH | Extra Large Two Purification Cartridge Holders with Two-Chemb Breathing Air Purification system or hot and humid climates |
PCSD200 | Filter control system with LED indicator of filter cartridge saturation (with 2PCHH only) |
PAC300/100 | Pressure Adapter 300-200bar/4400-3000 psi with MP330 only |
*Based on charging an 11 Liter / 80 Cu. Ft. Cylinder from 35 bar / 500 psi to 200 bar / 3000 psi
SeaComAir 215 - 265 Open Cabinet Steel Frame are continuous duty compressors.
**32A 3P+E plug not supplied
