High Pressure Air Storage Tanks & System Racks


Air Storage Cylinder Rack 50 1x50 Liter

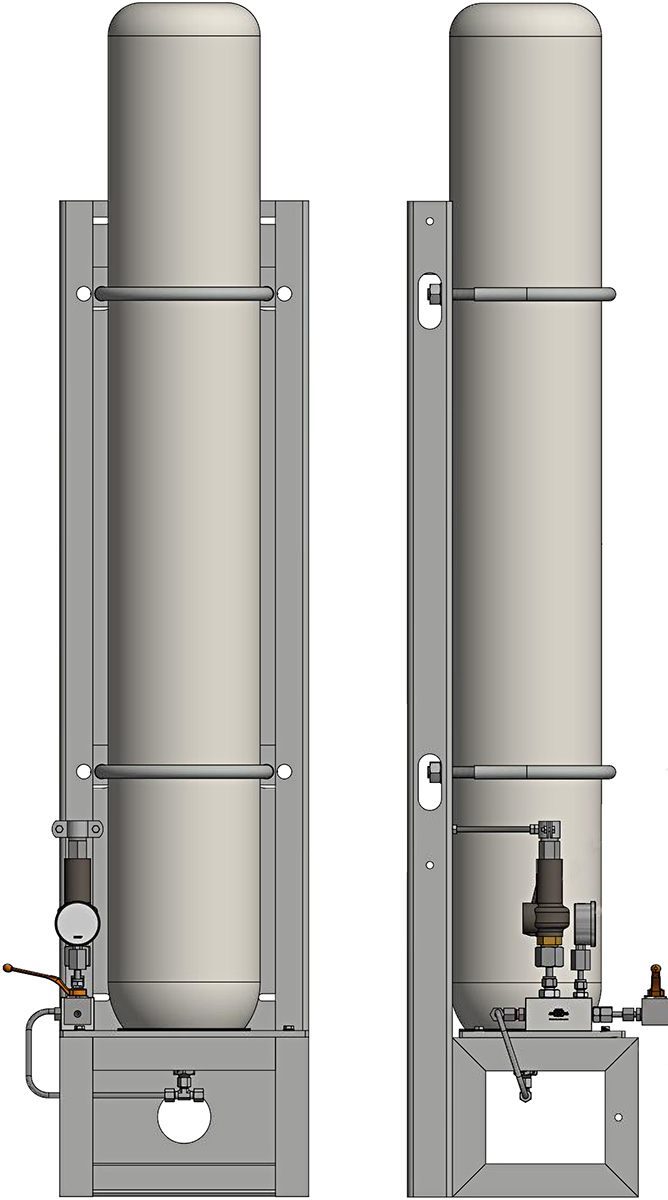

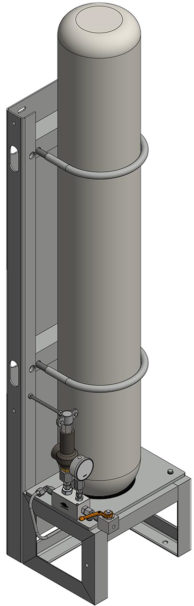

ASCR50-350 Air Storage Cylinder Rack 50 1×50 Liter
ASCR50-350 Air Storage Cylinder Rack 50 1×50 Liter
Models
Volume
Approx. Capacity @ Working Pressure
Dimensions inch-cm LxDxH
Weight kg-lbs
ASCR50

50 Liter (1×50 Liter)

18m3/618cft@350bar/5000psi

23m3/795cft@450bar/6500psi

12”(30)x14”(35)x65”(165)

156-343

165-363

Standard Features
  • High pressure, air storage system with one, two or three 50 liter 350bar/5000psi, 400bar/5800psi or 450bar/6500psi (as option WP450) cylinders
  • Construction Durable, powder coated steel cabinet Lightweight Steel Alloy
  • Working Pressure 350bar/5000psi, 400bar/5800psi or 450bar/6500psi (as option WP450)
  • Test Pressure 525bar/7600psi or 675bar/9800psi
  • Pressure Equipment Directive PED CE certified
  • Seamless Steel Gas Cylinder according EN ISO 9809-2
  • One connection G1/4" or G3/8"
  • Safety Pressure Valve 370bar/5365psi, 420bar/6090psi or 470bar/6815psi (as otion)
  • Storage pressure gauge 0-450bar/6500psi (as option)
  • Water drain manually
  • TÜV Certificate according EC Directive 97/23/EC regulations AD 2000
  • Modular system, available also in vertical 2, 3, 4, 5 or 6 pack
Factory Options ASCR50 Air Storage Tank Rack
Models
Description
BSS

High Pressure INOX Filling Panel with connection G1/4“ or G3/8″

SV3/4

Safety Pressure Valve 370bar/5365psi, 420bar/6090psi or 470bar/6815psi

PG450

Storage pressure gauge 0-450bar/6500psi

SOV

Shut-off lever valve 500 bar

WP450

Working Pressure 450bar/6500psi, Design Pressure 500bar/7250psi

PR10-410

Pressure Reducer with Outlet Pressure setting range 10bar/120psi – 410bar/6000psi

OXY

Applications for Argon, Helium, Hydrogen, Methane, Nitrogen, Oxygen, Natural Gas
