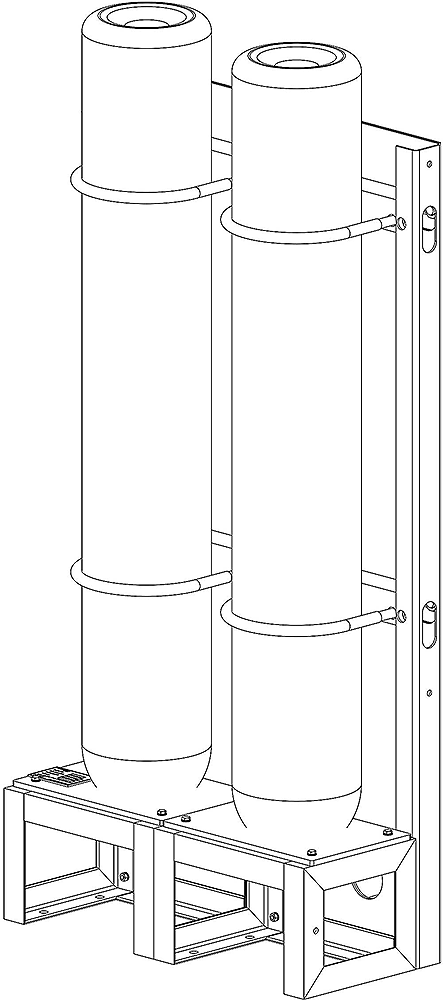

Air Storage Cylinder Rack 100 2×50 Liter

Models	Volume	Approx. Capacity @ Working Pressure	Dimensions inch-cm LxDxH	Weight kg-lbs
ASCR100	100 Liter (2×50 Liter)	35m3/1236cft@350bar/5000psi 45m3/1590cft@450bar/6500psi	24”(60)x14”(35)x65”(165)	312-686 330-726

High pressure, air storage system with two 50 liter 350bar/5000psi, 400bar/5800psi or 450bar/6500psi (as option WP450) cylinders
Construction Durable, powder coated steel cabinet Lightweight Steel Alloy
Working Pressure 350bar/5000psi, 400bar/5800psi or 450bar/6500psi (as option WP450)
Test Pressure 525bar/7600psi or 675bar/9800psi
Pressure Equipment Directive PED CE certified
Seamless Steel Gas Cylinder according EN ISO 9809-2
One connection G1/4" or G3/8"
Safety Pressure Valve 370bar/5365psi, 420bar/6090psi or 470bar/6815psi (as otion)
Storage pressure gauge 0-450bar/6500psi (as option)
Water drain manually
TÜV Certificate according EC Directive 97/23/EC regulations AD 2000
Modular system, available also in vertical 3, 4, 5 or 6 pack

Models	Description
BSS	High Pressure INOX Filling Panel with connection G1/4“ or G3/8″
SV3/4	Safety Pressure Valve 370bar/5365psi, 420bar/6090psi or 470bar/6815psi
PG450	Storage pressure gauge 0-450bar/6500psi
SOV	Shut-off lever valve 500 bar
WP450	Working Pressure 450bar/6500psi, Design Pressure 500bar/7250psi
PR10-410	Pressure Reducer with Outlet Pressure setting range 10bar/120psi – 410bar/6000psi
OXY	Applications for Argon, Helium, Hydrogen, Methane, Nitrogen, Oxygen, Natural Gas
