High Pressure Storage Cylinder Lift Racks

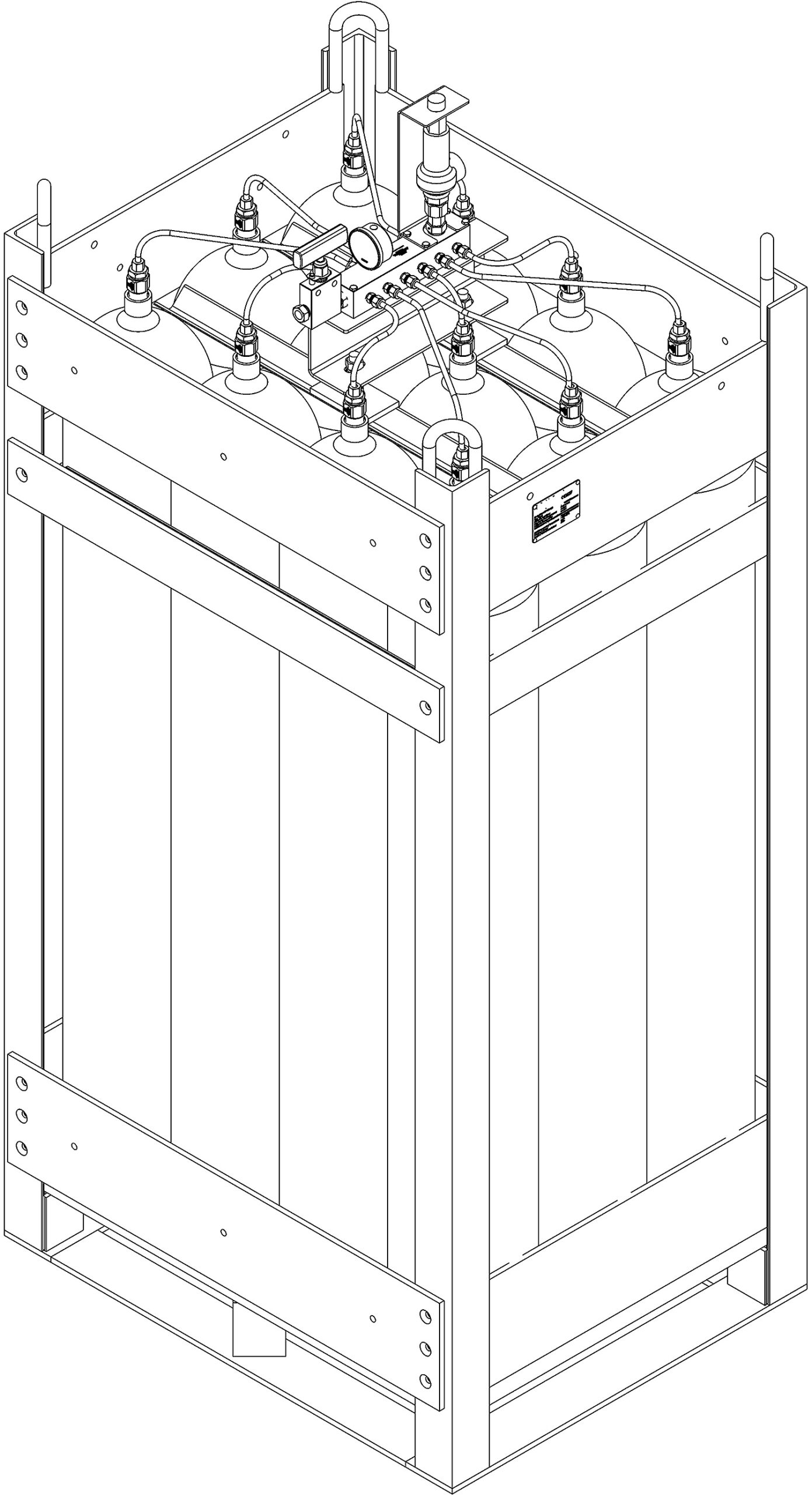

Air Storage Cylinder Lift Rack 600 12x50 Liter
Models | Volume | Approx. Capacity @ Working Pressure | Dimensions inch-cm LxDxH | Weight kg-lbs |
---|---|---|---|---|
ASCLR600 | 600 Liter (12×50 Liter) | 210m3/7416cft@350bar/5000psi 270m3/9540cft@450bar/6500psi | 38”(96)x30”(77)x77”(197) | 1290-2638 1660-3652 |
Standard Features
- Four Point Lift Rack
- Construction Durable, steel frame
- High pressure, Breathing air storage system with twelve (12) 50 liter 350bar/5000psi, 400bar/5800psi or 450bar/6500psi (as option WP450) cylinders
- Working Pressure 350bar/5000psi, 400bar/5800psi or 450bar/6500psi (as option WP450)
- Test Pressure 525bar/7600psi or 675bar/9800psi
- Pressure Equipment Directive PED CE certified
- Seamless Steel Gas Cylinder according EN ISO 9809-2
- High Pressure INOX Panel with connection G1/4“ or G3/8″
- Safety Pressure Valve 370bar/5365psi, 420bar/6090psi or 470bar/6815psi (as otion)
- Storage pressure gauge 0-450bar/6500psi (as option)
- TÜV Certificate according EC Directive 97/23/EC regulations AD 2000
- Modular system, available also in vertical 6 or 8 pack
Factory Options ASCLR600-350 Air Storage Cylinder Lift Racks
Models | Description |
---|---|
BSS | High Pressure INOX Filling Panel with connection G1/4“ or G3/8″ |
SV3/4 | Safety Pressure Valve 370bar/5365psi, 420bar/6090psi or 470bar/6815psi |
PG450 | Storage pressure gauge 0-450bar/6500psi |
SOV | Shut-off lever valve 500 bar |
WP450 | Working Pressure 450bar/6500psi, Design Pressure 500bar/7250psi |
PR10-410 | Pressure Reducer with Outlet Pressure setting range 10bar/120psi – 410bar/6000psi |
OXY | Applications for Argon, Helium, Hydrogen, Methane, Nitrogen, Oxygen, Natural Gas |
