High Pressure Industrial compressors

Compressed Natural Gas (CNG) Compressors


SeaComAir 150 – 200 CNG Silent

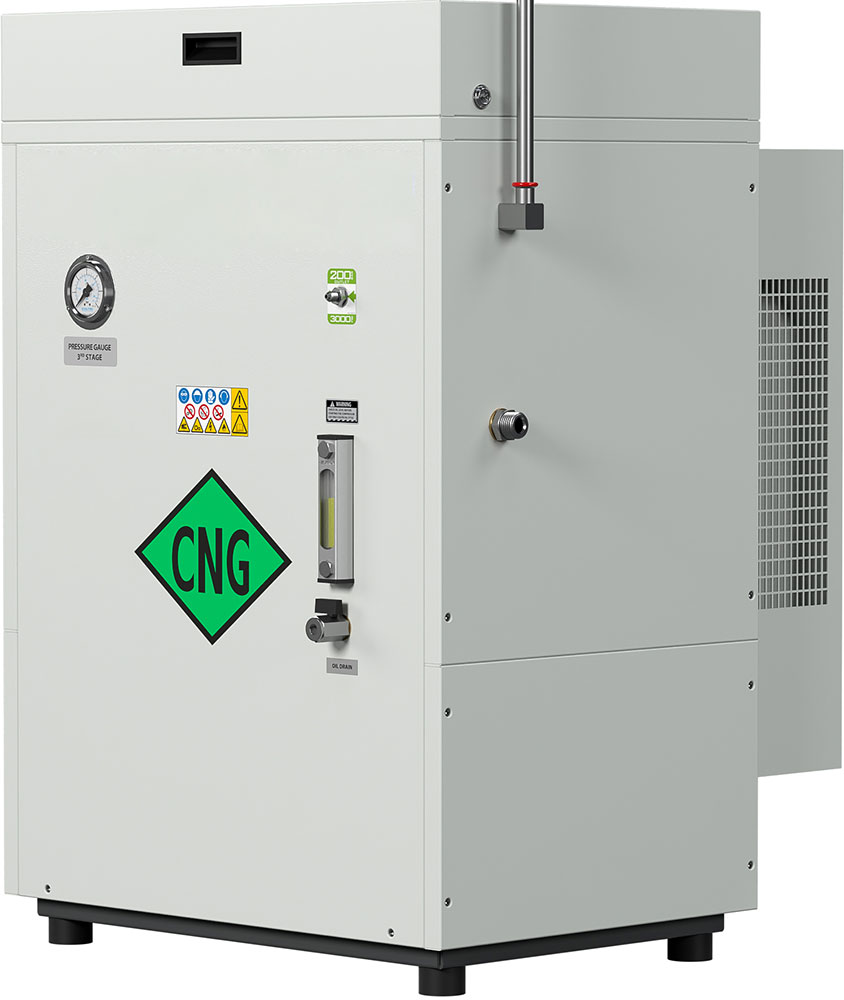

SCA150CNG natural gas compressor
SCA150CNG natural gas compressor
SCA150CNG panel
Models
Motor
Charging Rate*
Refill time*
Max. Pressure
Dimensions LxDxH
Weight
Noise
Natural Gas CNG

Electric

L/min – cfm

Min

Bar – psi

inch – cm

kg – lbs

dB (ISO3746)

SCA150E43/CNG

4kW 230/400V/50-60Hz 3ph

170 – 6

78

250 – 3600

27,5”(70)x26”(67)x41”(105)

180 – 396

95

SCA200E43/CNG

5kW 230/400V/50-60Hz 3ph

270 – 9

49

250 – 3600

27,5”(70)x26”(67)x41”(105)

180 – 396

96

Standard Features

Specifications

  • Compressed Natural Gas compressor
  • Mounted in a plastic coated steel cabinet
  • Sound proofing system
  • Meets or exceeds all international Natural Gas standards ATEX 94/9/EC, PED 97/23/EC, Machine 98/37/EC
  • MECP Main Electric Control Panel with electric cable
  • On/Off Switch, Emergency OFF switch
  • Hour meter
  • Antistatic Drive Belt
  • Rotation control warning light
  • Suction valve to connect Natural gas
  • Interstage Safety Pressure switch on 1st stage
  • Final safety valve
  • Final Pressure Switch/Auto-Stop
  • Oil level sight glass indicator
  • Final recharge pressure gauge
  • Manual condensate drain
  • External oil level sight glass indicator with oil drain
  • One air purification system with molecular sieve
  • Filling hose with CNG filling nozzle
  • CNG Silent compressor, Continuous duty air cooled, three stage three cylinder, all stainless steel inter- and final-stage coolers
  • Splash lubrication with oil thrower pin
  • Max. RPM 1400 – 1600
  • Oil Capacity 1,7 Liter / 59 oz
  • Oil Type SeaComAir synthetic compressor oil ISO CE

Factory Options

Models
Description
BAC5002

Filling hose Brake Away Safety Controll

*Based on charging an 80 Liter / 560 Cu. Ft. Cylinder from 35 bar / 500 psi to 200 bar / 3000 psi
